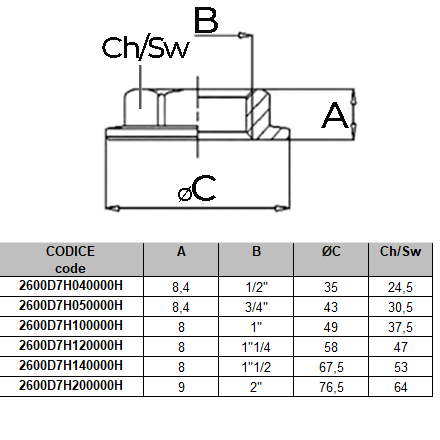

Code Size Pcs. Bag Pcs. Box
2600D7H040000H 1/2” 10 250
2600D7H050000H 3/4” 10 200
2600D7H100000H 1” 10 150
2600D7H120000H 1”1/4 10 100
2600D7H140000H 1”1/2 10 80
2600D7H200000H 2” 10 50
  • Fittings of LINE 2600/2700 are made of high-quality brass . Thread complies with UNI EN ISO 228-1:2003.
    They are suitable for hot and cold water in sanitary and heating installations and in any kind of sanitary installation such as domestic, commercial, industry and farming.
    Nickel plated fittings can't be used for sanitary installations.
    The wide assortment of shapes and diameters and the numerous chromed and nickel-plated variants meet all types of installations need.
  • APPLICATIONS APPLICATIONS T. min.  T. max with gasket  T. max without gasket  Press.max with gasket  Press.max without gasket
    drinking water -20°C  +100°C  +120°C  10 bar  16 bar
    sanitary hot water -20°C  +100°C  +120°C  10 bar  16 bar
    cooling  -20°C  +100°C  +120°C  10 bar  16 bar
    radiators -20°C  +100°C  +120°C  10 bar  16 bar
    irrigation -20°C  +100°C  +120°C  10 bar  16 bar
    compressed air -20°C  +100°C  +120°C  10 bar  16 bar
    -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30%
    • Complete range
    • Available yellow, nickel-plated, chrome-plated and chrome polished brass version
    • Quick and safe installation
    • Equipped with key seat and knurling for simple and easy assembly
    • Suitable for water and compressed air
    • Raw materials complying with UBA LIST
    • CW617N brass complying with EN 12165 standard
    • Excellent resistance to high temperatures and atmospheric agents
  • Document name File
    2600 technical data sheet PDF Download
  • COUNTRY CERTIFICATION COUNTRY CERTIFICATION COUNTRY CERTIFICATION
