SERIE 5G00

SERIE 5G00
Racores multiperfil a presión para agua, gas y calefacción
  • TRIDENT es la serie exclusiva de racores de compresión para tubo multicapa con triple aplicación: AGUA, GAS y CALEFACCIÓN. Los racores se pueden utilizar en instalaciones de conducción de agua caliente y fría para uso sanitario o de calefacción/enfriamiento, en instalaciones de conducción de gas para uso doméstico alimentados por una red de distribución, por un balón o un tanque fijo de GLP y en cualquier tipo de instalación hidráulica (comercial, doméstica, industrial y agrícola) e incluso hasta con fluidos no agresivos.
    Los racores de la SERIE 5G00 han sido estudiados y probados para ser utilizados sin problemas con los perfiles de pinzado TH, H, U. La serie 5G00 presenta racores de compresión para tubo multicapa con cuerpo en latón y buje de acero.
    La geometría del racor permite un acoplamiento óptimo entre el tubo y el racor luego del prensado, mientras que los orificios del portabuje permiten verificar la inserción correcta del tubo. Dos O-Ring aseguran el ajuste y la fiabilidad del producto en el tiempo.
    Tratándose de un racor de tipo de junta irreversible [no desarmable]:
    - para su uso con agua es posible posicionar el racor en un surco, mientras este sea protegido con materiales idóneos (ver el certificado de conformidad nº 0128/15)
    - para su uso con gas es posible posicionar el racor en un surco, mientras se trate de agujeros preparados para una posterior inspección
  • Aplicaciones Aplicaciones Temperatura mínima Temperatura máxima Temperatura del sistema Presión máxima
    agua potable -20°C  +120°C  -20°C/+95°C  10 bar
    agua caliente sanitaria -20°C  +120°C  -20°C/+95°C  10 bar
    enfriamiento -20°C  +120°C  -20°C/+95°C  10 bar
    radiadores -20°C  +120°C  -20°C/+95°C  10 bar
    calefacción por suelo radiante -20°C  +120°C  -20°C/+95°C  10 bar
    aire comprimido -20°C +120°C  -20°C/+95°C 10 bar
    riego -20°C  +120°C  -20°C/+95°C  10 bar
    gas -20°C  +70°C  -20°C/+70°C  0.5 MOP
    -20 °C (con el uso de glicol en un porcentaje máximo del 30%) -20 °C (con el uso de glicol en un porcentaje máximo del 30%) -20 °C (con el uso de glicol en un porcentaje máximo del 30%) -20 °C (con el uso de glicol en un porcentaje máximo del 30%) -20 °C (con el uso de glicol en un porcentaje máximo del 30%)
    • Triple aplicación: AGUA, GAS y CALEFACCIÓN
    • Multiperfil
    • Doble O-Ring certificado para agua y gas
    • Simplificación en la gestión de códigos y reducción del inventario
    • Mayor seguridad en el lugar de la obra (1 producto único para agua y gas)
    • Buje con calcomanía a color para fácil reconocimiento de aplicaciones y dimensiones
    • Anillo dieléctrico con orificios de control de posición correcta del tubo
    • Las materias primas utilizadas son de alta calidad [UBA LIST]
    • Conforme a la normativa UNI 11344
    • Trazabilidad del producto garantizada por los datos impresos en el mismo racor
    • Rosca cónica ISO 7/ 1
    • Amplia gama [del Ø 16 al Ø 32]
  • Nombre del documento File
    Ficha técnica_5G00 PDF Descargar
    Brochure 5G00 Trident PDF Descargar
    KIWA Trident 5G00 PDF Descargar
    KIWA Trident Metalgas 2_5G00 PDF Descargar
    KIWA Trident Metalgas_5G00 PDF Descargar
    Trident technical manual PDF Descargar
  • NACIÓN CERTIFICACIÓN NACIÓN CERTIFICACIÓN NACIÓN CERTIFICACIÓN

Línea de producto

5F00.N6
VÁL.DE CODO CON TOMA DE PRESIÓN ASIENTO CÓNICO - ART.5G00.I5
5F00.N7
VÁL.DE CODO CON TOMA DE PRESIÓN ASIENTO CÓNICO - ART.5G00.I5
5F00.N8
KIT DE PRUEBA DE PRESIÓN
5F00.N9
VÁLVULA ANGULAR CON DISPOSITIVO DE SEGURIDAD
5F00.O1
VÁLVULA RECTA CON DISPOSITIVO DE SEGURIDAD TÉRMICA
5F00.O2
VÁLVULA DE ESQUADRA CON DISPOSITIVO DE SEGURIDAD TÉRMICA
5G00.00
RACOR RECTO
5G00.01
RACOR RECTO MACHO
5G00.02
RACOR RECTO HEMBRA
5G00.03
RACOR RECTO REDUCIDO
5G00.10

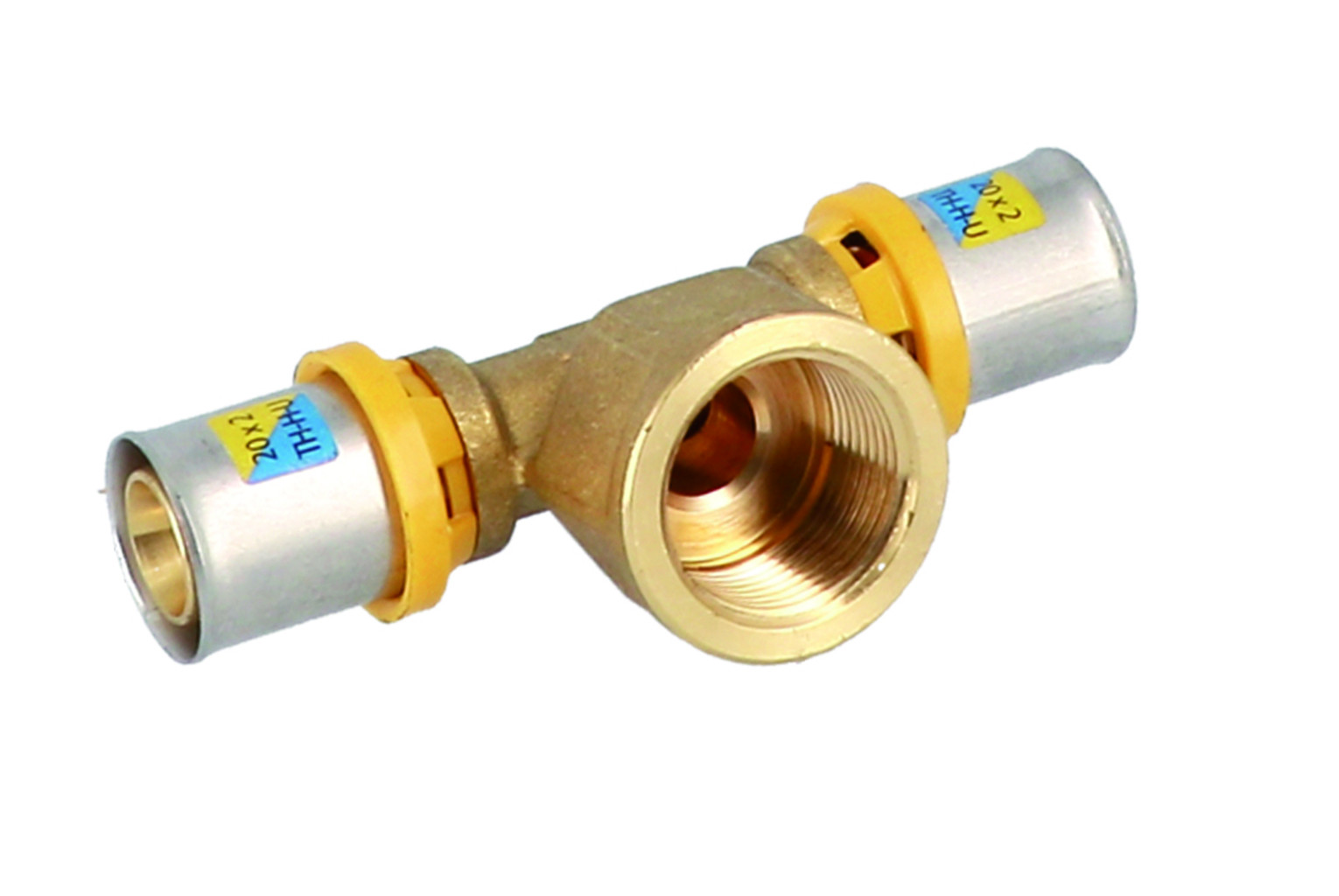

RACOR EN TE
5G00.11
RACOR TE ROSCA MACHO
5G00.12
RACOR TE ROSCA HEMBRA
5G00.13
RACOR EN TE CON CONEXIONES REDUCIDAS
5G00.20
RACOR CODO
5G00.21
RACOR CODO MACHO
5G00.22
RACOR CODO HEMBRA
5G00.23
RACOR CODO CON PATAS
5G00.C7
RACOR RECTO ASIENTO PLANO CON TORNO
5G00.G3
RACOR CODO CON ARANDELA Y JUNTA DEESTANQUEIDAD PLANA.
5G00.I5
RACOR RECTO ASIENTO CÓNICO JUNTA TÓRICA CON TORNO
